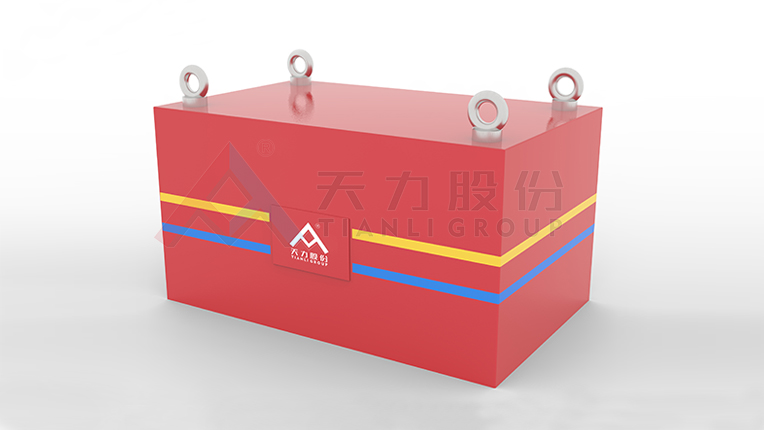

Suspended Magnet RCYB serious
【Application 】：
Apply to all belt conveyor, vibrating feeder and chute above, the occasion of the iron content is less.
【Advantages 】：
Adopting high coercive force, high remanence of NdFeB permanent magnet to composite magnetic system, strong magnetic field and suction.
Installation is simple, easy to use, reliable operation, maintenance free.
Various technical indexes meet JB/T8711-2006.

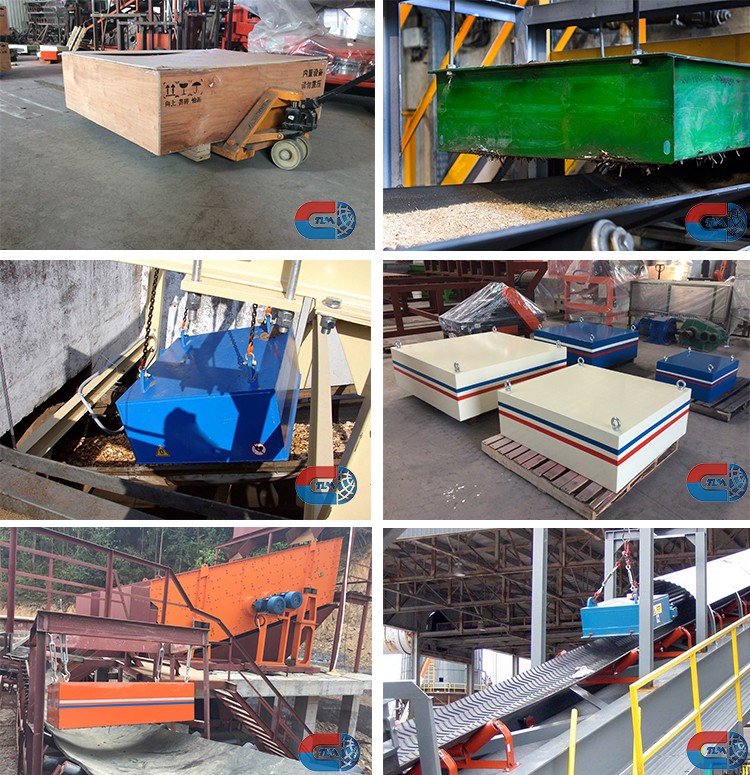

The cases recently:
| Equipment Parameters | |||||||||
| Type | Suitable Belt width (mm) | Material Thickness ≤(mm) | Rated Lifting Height ≤(mm) | Magnetic Intensity (MT) | Suitable Belt Speed | Overall Dimensions | Weight(kg) | ||
| L×W×H(mm) | Suspension Center | ||||||||
| RCYB-4 | 400 | 80 | 130 | 45 | ≤2.5m/s | 400*300*240 | 300*200 | 80 | |
| RCYB-5 | 500 | 100 | 150 | 50 | 500*400*240 | 400*300 | 125 | ||
| RCYB-6.5 | 650 | 150 | 200 | 70 | 650*400*240 | 550*300 | 200 | ||
| RCYB-8 | 800 | 200 | 250 | 70 | 800*400*420 | 700*300 | 300 | ||
| RCYB-10 | 1000 | 250 | 300 | 70 | 1000*600*420 | 900*500 | 500 | ||
| RCYB-12 | 1200 | 300 | 350 | 70 | 1200*800*420 | 1100*700 | 800 | ||
