Magnetic Separator(TLGT)

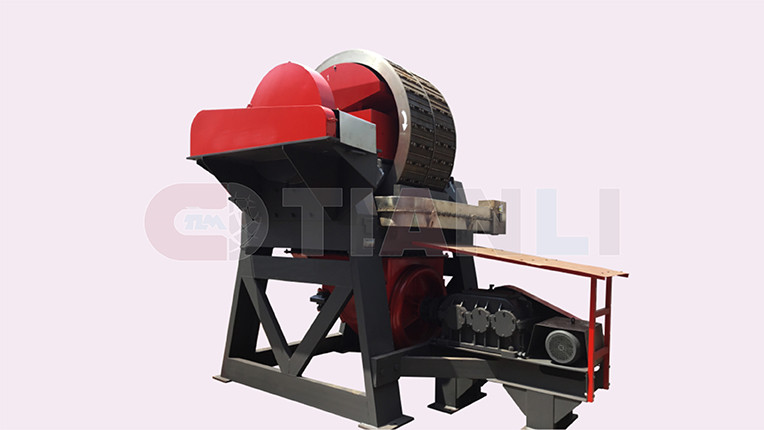

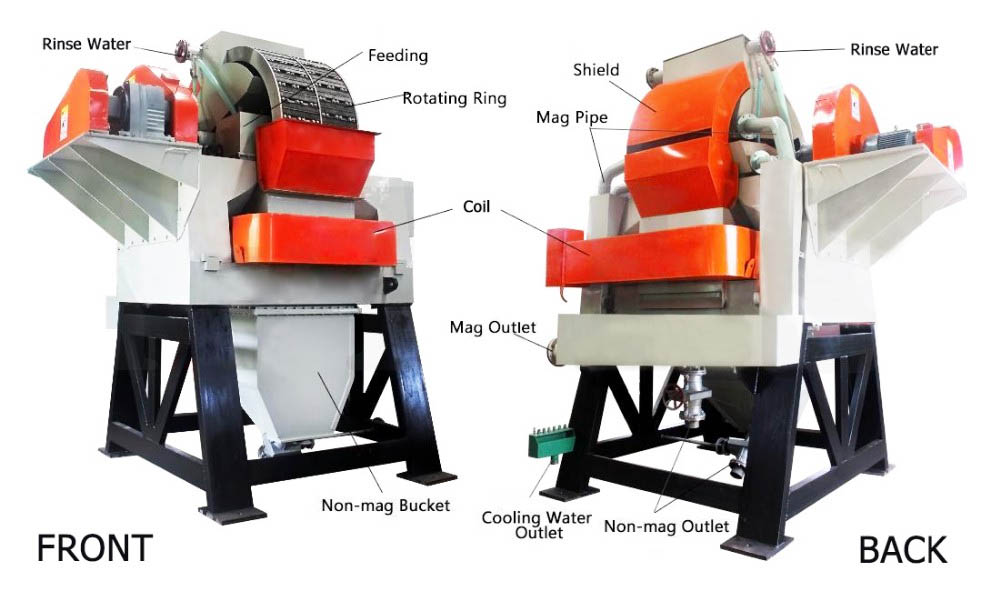

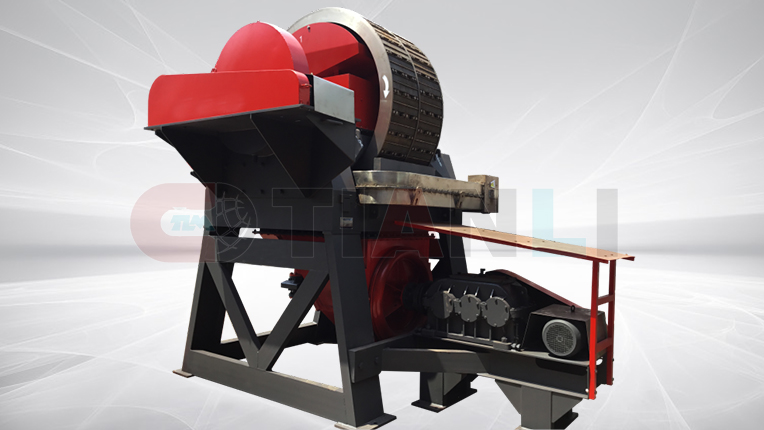

TLGT High Gradient Magnetic Separator adopts swivel vertical rotation, recoil concentrate, with pulsating mechanism, fundamentally solves the flat ring magnetic separation machine peace ring high gradient magnetic separator magnetic medium easy to jam the
Sortable Materials:
  • Product Details
  • Technical Parameters


Technical advatage:

TLGT vertical ring and pulsating high gradient magnetic separator utilizes vertical ring rotation, pulsating beneficiation and high frequency vibrator, and it has no magnetic medium jam problem in flat ring high intensity magnetic separator and flat ring high gradient magnetic separator.It has the advantages of large beneficiation ratio, high security and convenient operation etc. This product realizes both high beneficiation ratio and high recycle ratio in separating weak magnetic minerals.


Application:

Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite, Ilmenite, Manganese, Etc.

Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite and Cassiterite, Wolframite and Cassiterite, Limonite Purifying, Scheelite, Wolframite and Garnet, Etc.

Recovering Rare Earth: Tantalum and Niobium, Lepidomelane, Monazite, Etc.

Brightening Non Metals: Quartz, Feldspar And Kaolin for Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for Refractory, and Separating Impurities From Hornblende, Mica, Tourmaline, Garnet, Etc,


Main Features:

Work magnetic source using high magnetic energy product and dielectric materials with high gradient, high field intensity, big gradient, strong magnetic force. Uniform distribution, the density of soft magnetic medium has greatly increased the capture   probability of ferromagnetic impurities in pulp. Due to the resistance of dielectric materials can make the iron slurry is longer than the time slowly through the magnetic field in a row, effectively remove of strong magnetic impurities and part of the weak  magnetic iron oxide and titanium oxide, improve product whiteness, in order to achieve the ideal effect of iron removal.

PLC control, continuous work, automatically remove iron, automatic cleaning, cleaning time and cycle are adjustable, high reliability, long service life.

High intensity magnetic iron absorption, demagnetization wash, iron clean, less water, can removeworking medium inspection, cleaning, effectively avoid cross effects of different size.

The host is not electricity, low use cost, achieving energy saving and environmental protection, high efficiency on iron removal.

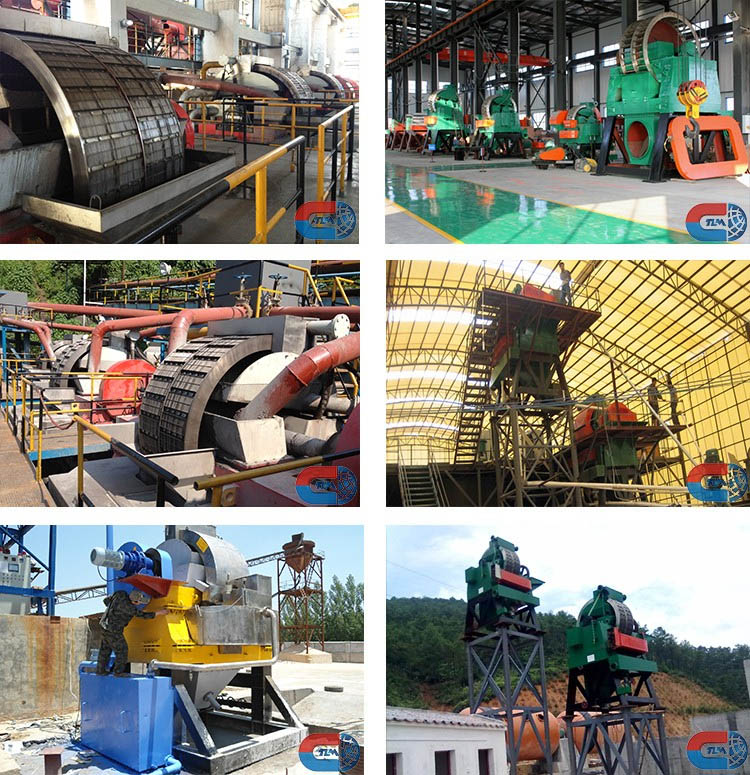

Customer site:


Cooling water quantity

Technical Parameters
Model

TLGT-500

TLGT-750 Lab/PilotTLGT-1000TLGT-1250TLGT-1500TLGT-1750TLGT-2000TLGT-2500TLGT-3000
Ring Diameter(mm)Φ500Φ750Φ1000Φ1250Φ1500Φ1750Φ2000Φ2500Φ3000
Ring speed(r/min)0.3-3
3/2-4
2-4
Feed size(mm)(-200目%)-1.0
-1.2(30-100)
Feed density(%)10-40
Slurry Volume(m³/h)0.25-0.5
0.5-1.0 / 5-1012.5-20
20-50
50-10075-150
100-200200-400
350-650
Capacity(t/h)0.03-0.1250.06-0.25 / 2-44-7
10-1820-30
30-5050-80
100-150
150-250
Rated Magnet Intensity(T)1.0
Rated excitation current(A)1300
1100/860
650
900950
12001200
14001400
Rated excitation voltage(V)12
16/17.526.5
3137
384345
62
Rated excitation power(kw)16
18/1517
283546
526387
Ring motor power(kw)0.370.55
1.11.5
345.511
18.5
Pulsating motor power(kw)0.37
0.75/1.52.2
2.2447.5
1118.5
Pulsating stroke(mm)0-50
0-50 / 0-200-30
0-200-30
Pulsating speed(r/min)0-400
0-300
pressure of supply water(MPa)0.1-0.2
0.2-0.3
0.15-0.3
0.2-0.3
0.2-0.4
water consumption(m³/h)0.75-1.51.5-2.5 / 5-810-20
30-4560-90
80-120100-150
200-300350-530
1.5-2
1.5-22-2.52.5-33-4
4-65-6
6-78-10

Weigh

(t)
1.5
3/46
142035
50105175
Maximum unit weight(t)0.3
0.6/12.22
45
111415
25
Dimension(L×W×H)(mm)1800×1400×13202000×1360×16802700×2000×24003200×2340×27003600×2900×32003900×3300×38004200×3550×42005800×5000×54006600×5300×6400
