Metal Sensor Sorter(TLCG)

TLCG Metal Sensor Sorter, based on high sensitivity sensor technology to identify/detect the metal particles in the waste material, and then the metal particles are separated from the waste material through the compressed air nozzle, so as to achieve the
Sortable Materials:
  • Product Details
  • Technical Parameters


TLCG Metal Sorter, based on high sensitivity sensor technology to identify/detect the metal particles in the waste material, and then the metal particles are separated from the waste material through the compressed air nozzle, so as to achieve the purpose of separating two materials with different properties.


【Scope of application】:

● Metal recovery and purification

● Mixed packaging waste, RDF, waste paper, PET/PE recycling

● Electronic waste recycling, non-ferrous metal processing, cable recycling;

● Car dismantling and recycling, CRT glass, industrial/household waste, RDF production

【Product advatages】:

● The key parts are imported to ensure the stability and sensitivity of the equipment.

● Cooperating with Harbin Institute of Technology, adopting the most advanced technology, the program design is more reasonable

● There are a variety of separation modes available, can separate pure stainless steel and wire;

● Equipment recovery rate and product purity are comparable with imported EU equipment

● Reduced compressed air consumption (15-25%)

● The machine adopts man-machine intelligent control system to monitor the sorting situation in real time

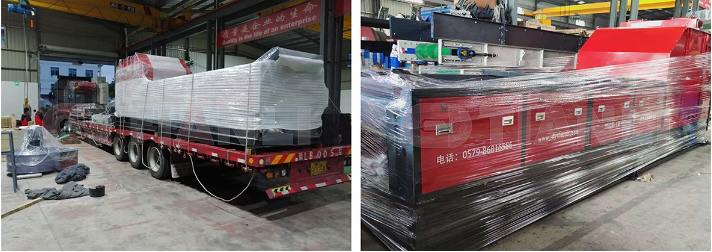

Metal sorter ready for delivery :1687310217945.png

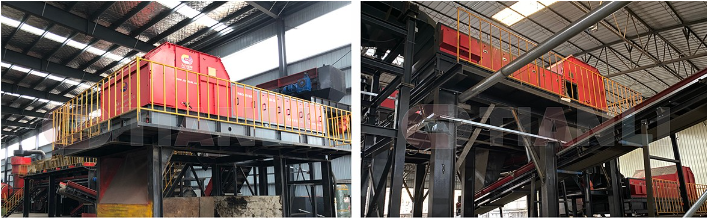

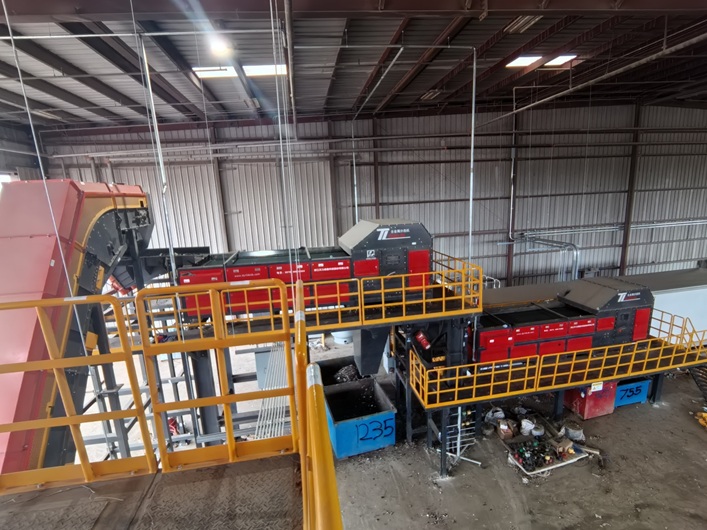

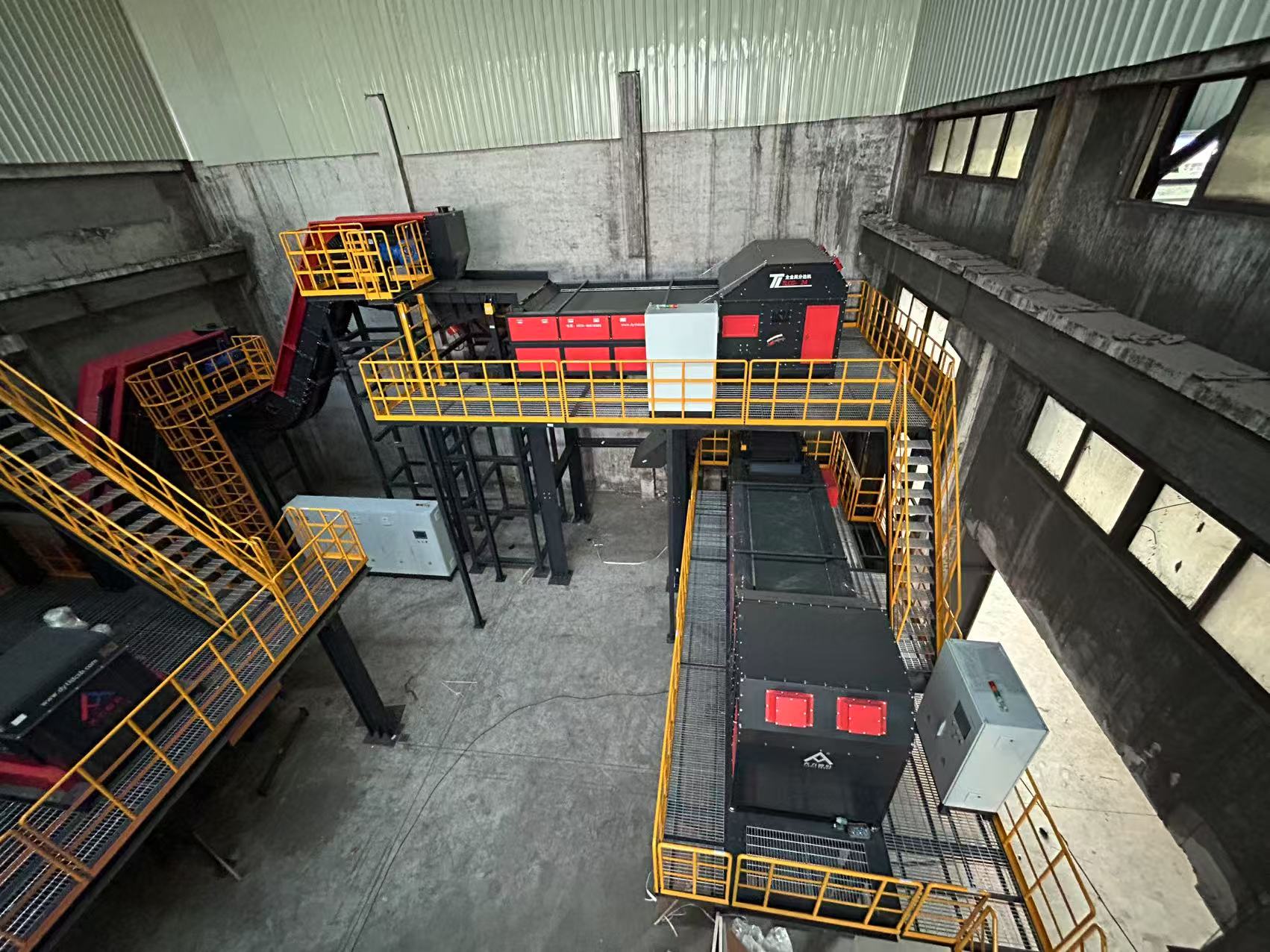

Customer site:


Technical parameters
Valve set type and nozzle spacingTLCG-6TLCG-12TLCG-18TLCG-24TLCG-30
Ts1500/6.25mm48valve96valve144valve192valve240valve
Ts400/6.25mm96valve192valve288valve384valve480valve
TS200/6.25mm96valve192valve288valve384valve480valve


valve
TypeA(mm)B(mm)C(mm)D(mm)E(mm)Weight(kg)Power(kw)
TLCG-6600140040006420208425804.3
TLCG-121200200035504.3
TLCG-181800260043606.1
TLCG-2424003200211557606.6
TLCG-303000380065208.1
