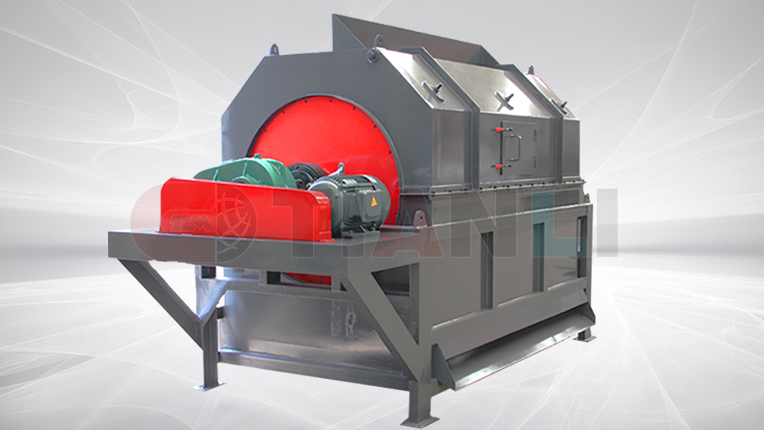

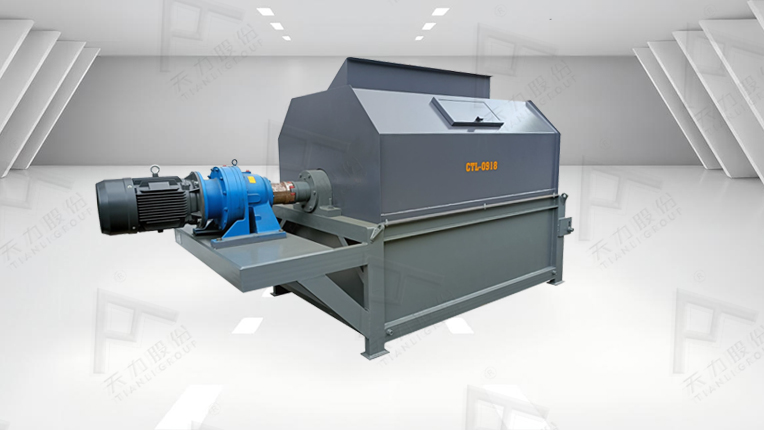

Magnetic Separator(CTL)

After the pulp flows into the tank through the feed box, the ore particles enter the tank into the mining area in a loose state under the action of the water flow of the ore spray pipe. In the role of the magnetic field, magnetic ore particles occur magne
Sortable Materials:
  • Product Details
  • Technical Parameters

Magnetic Separator CTL serious with dry process feature.

【Scope of Application】:

● It can be used for pre-concentration of low grade ore, pre-enrichment of ore resources, improving the grade of grinding and reducing the cost of dressing

 It is used for tailings reconcentration and recovery of relatively enriched tailings in dry slope section of tailings dam

● Used for the purification of dry powder of sulfuric acid slag by magnetic separation

● Used for iron removal of non-magnetic materials, the effect is obvious and the cost is low

● It is used for purifying fine powder in magnetic separation plant to remove the lean organic matter and gangue in fine iron powder, improve the grade of fine powder and increase the technical added value of products in the processing plant

Working Principle】:

After the pulp flows into the tank through the feed box, the ore particles enter the tank into the mining area in a loose state under the action of the water flow of the ore spray pipe. In the role of the magnetic field, magnetic ore particles occur magnetic convergence and form a "magnetic group" or "magnetic chain", "magnetic group" or "magnetic chain" in the pulp by magnetic force, to the magnetic pole movement, and is adsorbed on the cylinder. Due to the polarity of the magnetic poles along the cylinder rotation direction are arranged alternately, and fixed at work, "magnetic group" or "magnetic chain" in the cylinder rotates, with alternating polarity magnetic stirring, was mixed in the "magnetic group" or "magnetic chain" of the gangue and other non-magnetic minerals in turn off, has finally been sucked on the surface of the cylinder, the "magnetic group" or "magnetic lotus" is to concentrate. Concentrate with the cylinder to the magnetic edge of the weakest magnetic force, under the action of the discharge water pipe flushing water is discharged to the concentrate tank, if it is a full magnetic roller, ore unloading is carried out with a brush roller. Non-magnetic or weakly magnetic minerals are left in the pulp with the pulp out of the tank, that is, tailings.

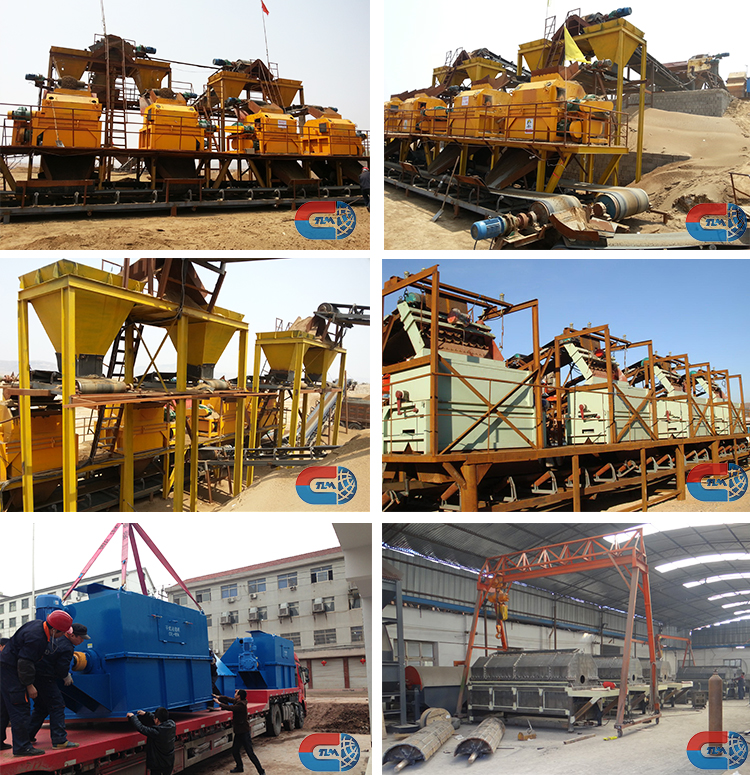

The cases recently:


Technical Parameters
ModelSpecificationSpeed(r/min)Magnet Intensity(mT)Capacity(t/h)Dimenstion(mm)

L×W×H

Power(kw)
Diameter(mm)Length(mm)
CTL-0816Φ80016000-63
Determine magnetic induction intensity according to mineral properties35-553053×1295×16717.52750
CTL-0818Φ800180055-70
3266×1295×167111.03300
CTL-0821Φ800210070-85
3936×1295×167115.03900
CTL-0824Φ800240085-1004235×1295×167118.54450
CTL-1021Φ105021000-50
100-1304030×1545×204618.5
4800
CTLQ-1021Φ10502100100-1304150×1545×185018.54680
CTLQ-1224Φ10502400115-1504720×1545×185022.0
5180
