ElectroMagnet(RCDC)

Applicable to steel plant, cement plant, power plant and other occasions. It is mainly used in slag removal and protection roller press, vertical mill, crusher and other important equipment. It is suitable for better environmental conditions.
Sortable Materials:
  • Product Details
  • Technical Parameters

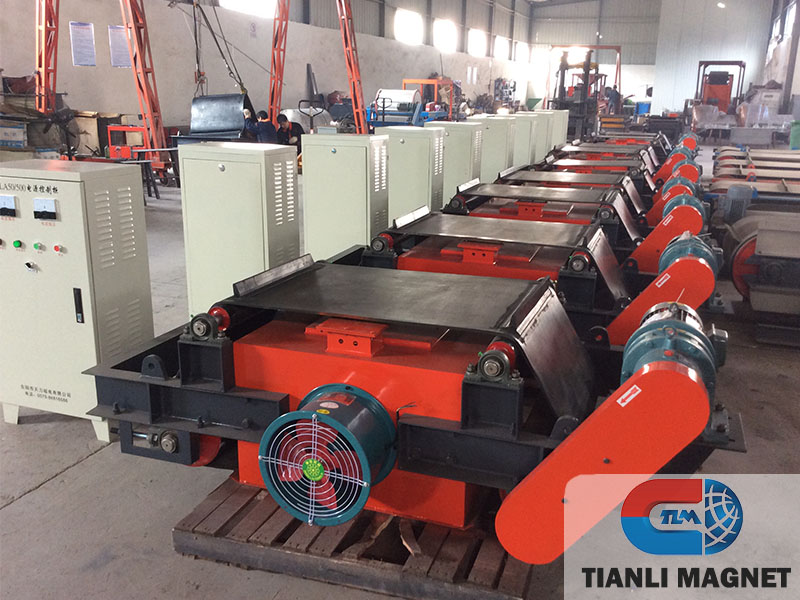

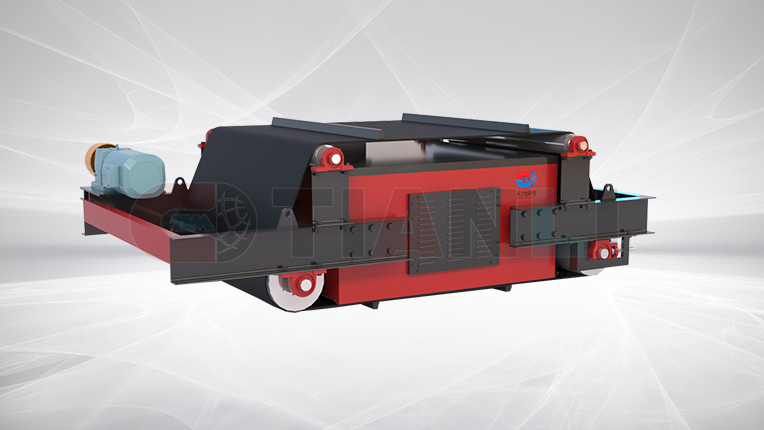

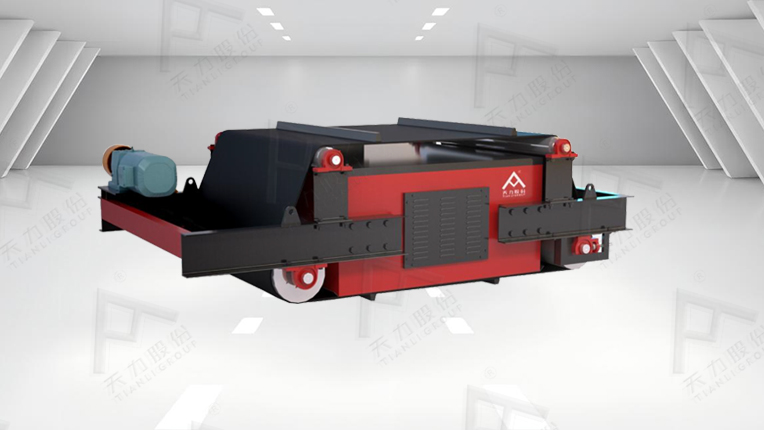

Electromagnet RCDC serious with air cooling feature.

Advantages

  • The magnetic circuit is designed by computer simulation with large depth  and strong magnetic force.

  • Special air duct design, forced air cooling by axial flow fan, large wind  amount, high wind pressure, fast heat dissipation of coil, low temperature  rise, small difference between cold and hot magnetic fields.

  • The coil adopts advanced paint dip insulation and solidification treatment technology to protect the coil from dust and harmful gas erosion, improve  the insulation performance of the whole machine, and ensure the long-term  continuous operation without aging.

  • Automatic discharge of iron, easy to maintain, drum waist drum structure, with automatic belt rectification function, special fully sealed bearing seat, can  achieve long-term fault-free operation.

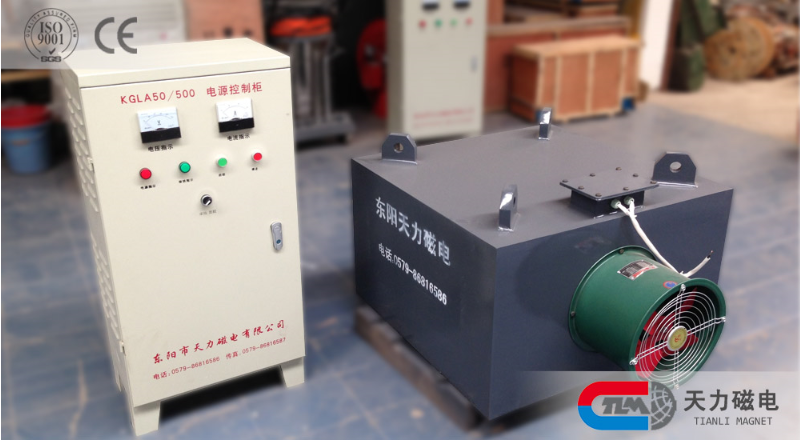

  • The products are well equipped and have complete functions of the rectifier  equipment. They have manual and centralized control functions and can meet  the requirements for a variety of occasions.

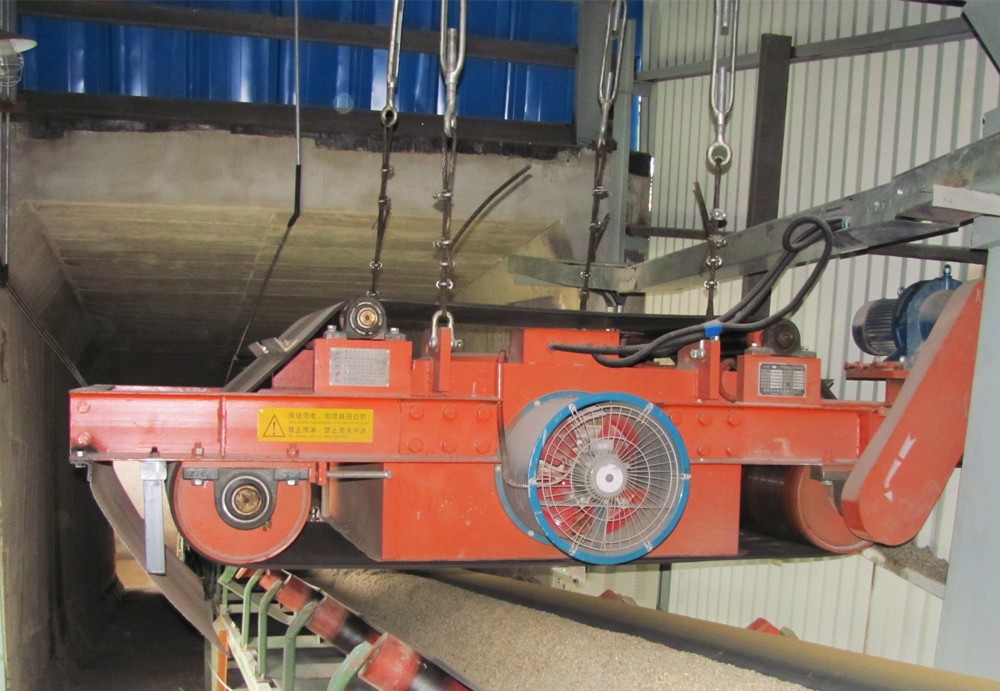

The case recently





<td width="76" valign="center" ssss="padding: 5px 10px; border-width: 43px 1px 1px 43px; border-left-style: none; border-left-color: rgb(255, 255, 255); border-top-style: none; border-top-color: rgb(255, 255, 255);" ssss="box-sizing: border-box; margin: 0px; padding: 0px; border-color: rgb(153

型号

带宽    (mm)

吊高 (mm)

磁场强度

(mT)

励磁

(kw)

风机功率

(kw)

尺寸

(mm)

皮带速度

(m/s)

重量

(kg)

L

W

H

RCDC-6.5

T1

650

200

90

3.0

0.37

2160

1100

820

4.5

1530

T2

120

5.0

0.75

2160

1100

820

1680

T3

150

8.0

1.1

2160

1100

820

1750

RCDC-8

T1

800

250

90

5.0

0.37

2340

1260

860

4.5

2100

T2

120

9.0

0.75

2340

1260

860

2350

T3

150

13.0

1.1

2340

1260

860

2480

RCDC-10

T1

1000

300
